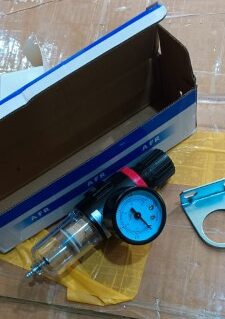

An air water separator
is a crucial component in compressed air systems. Its primary function is to remove liquid water and water droplets from compressed air before it reaches downstream equipment.
How Does It Work?
Air/water separators typically employ a combination of centrifugal force and gravity to separate water from the compressed air stream. The compressed air enters the separator tangentially, causing the water droplets to be flung to the outer wall and collect at the bottom of the unit. A drain valve allows for periodic removal of the collected water.
Importance of Air Water Separator
- Protects downstream equipment: Water can cause damage to pneumatic tools, valves, and other equipment.
- Improves system efficiency: Water can reduce the efficiency of compressed air systems.
- Ensures product quality: In applications like spray painting or food processing, water contamination can affect product quality.
Types of Air Water Separator
- Centrifugal separators: Rely on centrifugal force to separate water.
- Gravity separators: Use gravity to settle water droplets.
- Coalescing separators: Remove smaller water droplets through a coalescing element.
Maintenance and Considerations
- Regular draining: Empty the collected water regularly to prevent overflow.
- Filter replacement: Some separators have filters that need periodic replacement.
- Separator location: Install the separator as close to the compressor as possible.
By effectively removing water from compressed air, air/water separators contribute to the overall efficiency and reliability of compressed air systems.
