Nitrogen Regulator

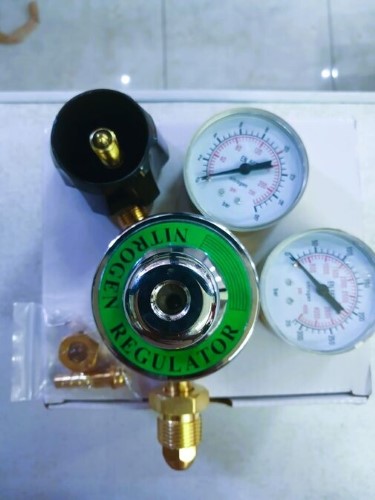

A nitrogen regulator

is a device used to control the flow rate and pressure of nitrogen gas. It’s a crucial component in various industrial and scientific applications where precise nitrogen delivery is required. Related

How Does a Nitrogen Regulator Work?

A typical nitrogen regulator consists of the following:

• Inlet port: Where the high-pressure nitrogen gas enters.
• Diaphragm: A flexible membrane that separates the high-pressure side from the low-pressure side.
• Spring: Adjusts the pressure on the diaphragm.
• Outlet port: Where the regulated nitrogen gas exits.

The spring exerts a force on the diaphragm, creating a pressure differential. When the outlet pressure drops below the set point, the diaphragm flexes, allowing more nitrogen to flow. Conversely, if the outlet pressure rises above the set point, the diaphragm closes, reducing the flow.

Applications

Nitrogen regulators find applications in numerous fields, including:

• Laboratory equipment: Gas chromatography, mass spectrometry, and other analytical instruments often require a steady supply of nitrogen gas at a specific pressure.
• Industrial processes: Nitrogen is used in various industrial processes, such as food packaging, welding, and chemical manufacturing. Regulators ensure that the nitrogen is delivered at the correct pressure and flow rate.
• Medical applications: Nitrogen is used in cryotherapy and other medical procedures. Regulators help control the temperature and pressure of the nitrogen gas.
• Electronics manufacturing: Nitrogen is used to prevent oxidation during the manufacturing of electronic components. Regulators help maintain a controlled nitrogen environment. More

Types

There are different types of nitrogen regulators, each suited for specific applications:

• Single-stage regulators: These regulators provide a single stage of pressure reduction. They are suitable for applications where a moderate pressure reduction is needed.
• Two-stage regulators: These regulators provide two stages of pressure reduction, resulting in a more precise and stable output pressure. They are often used in applications where a high degree of pressure control is required.
• Backpressure regulators: These regulators maintain a constant outlet pressure regardless of the inlet pressure. They are useful in applications where the inlet pressure fluctuates.
